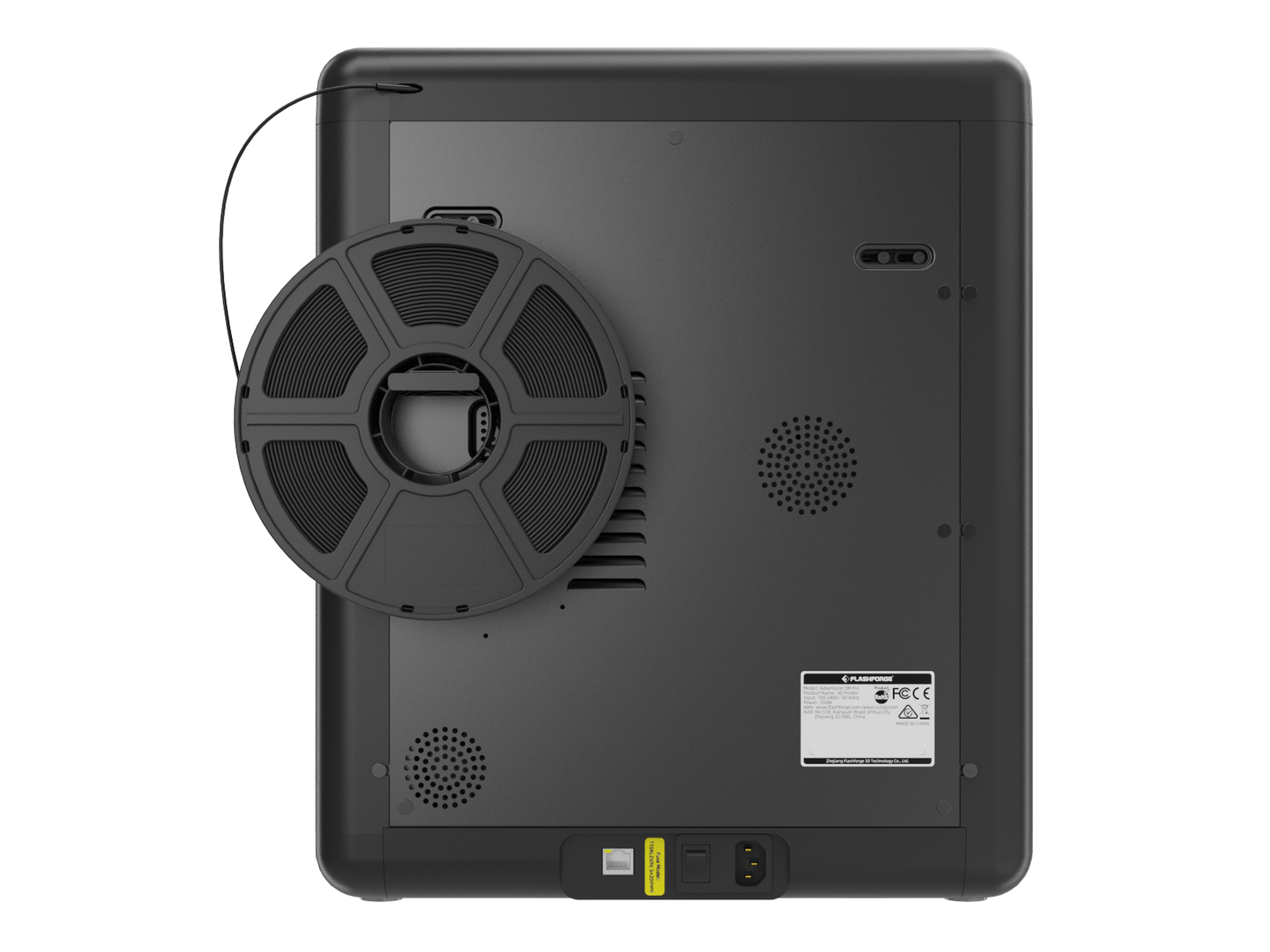

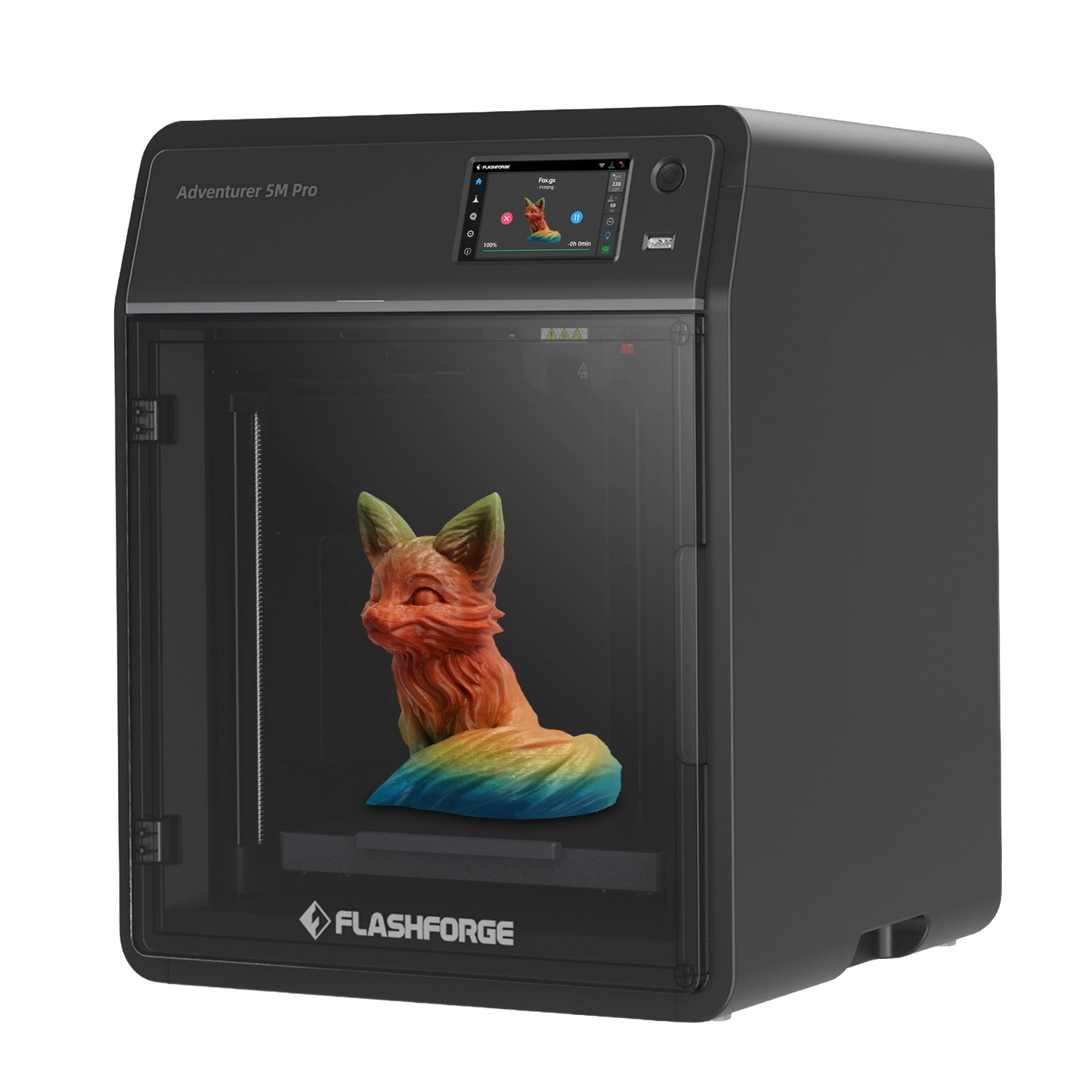

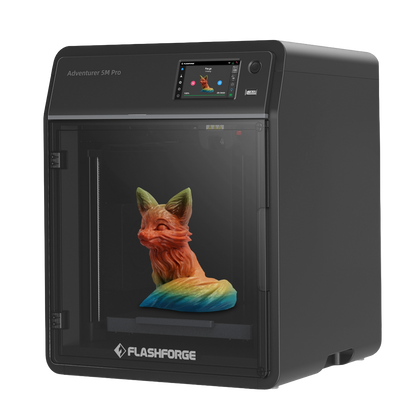

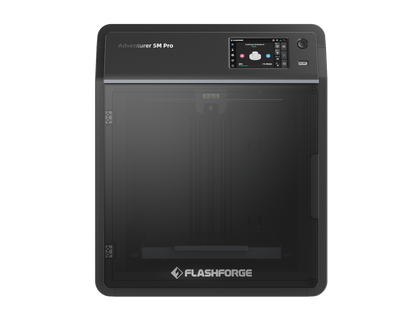

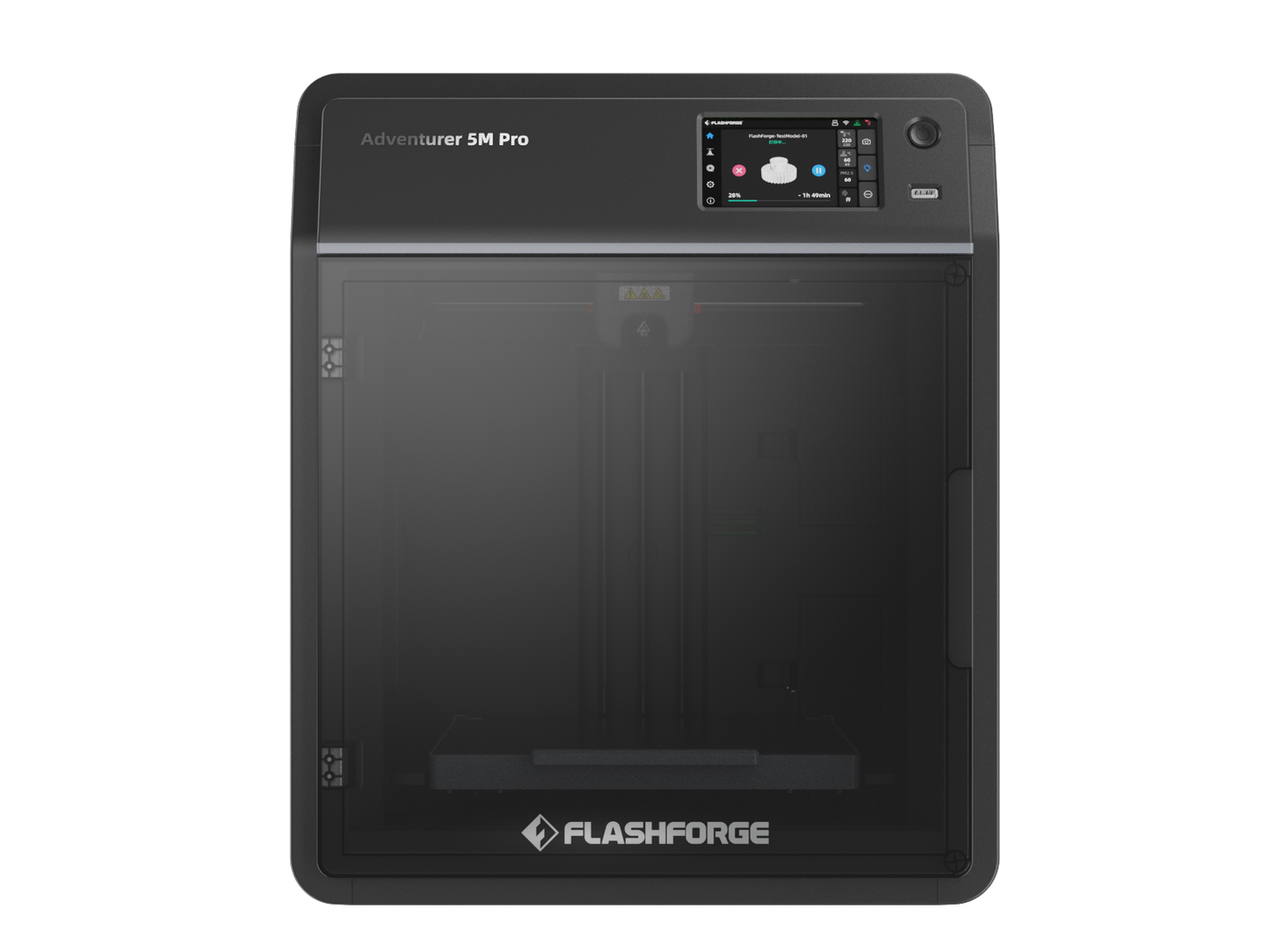

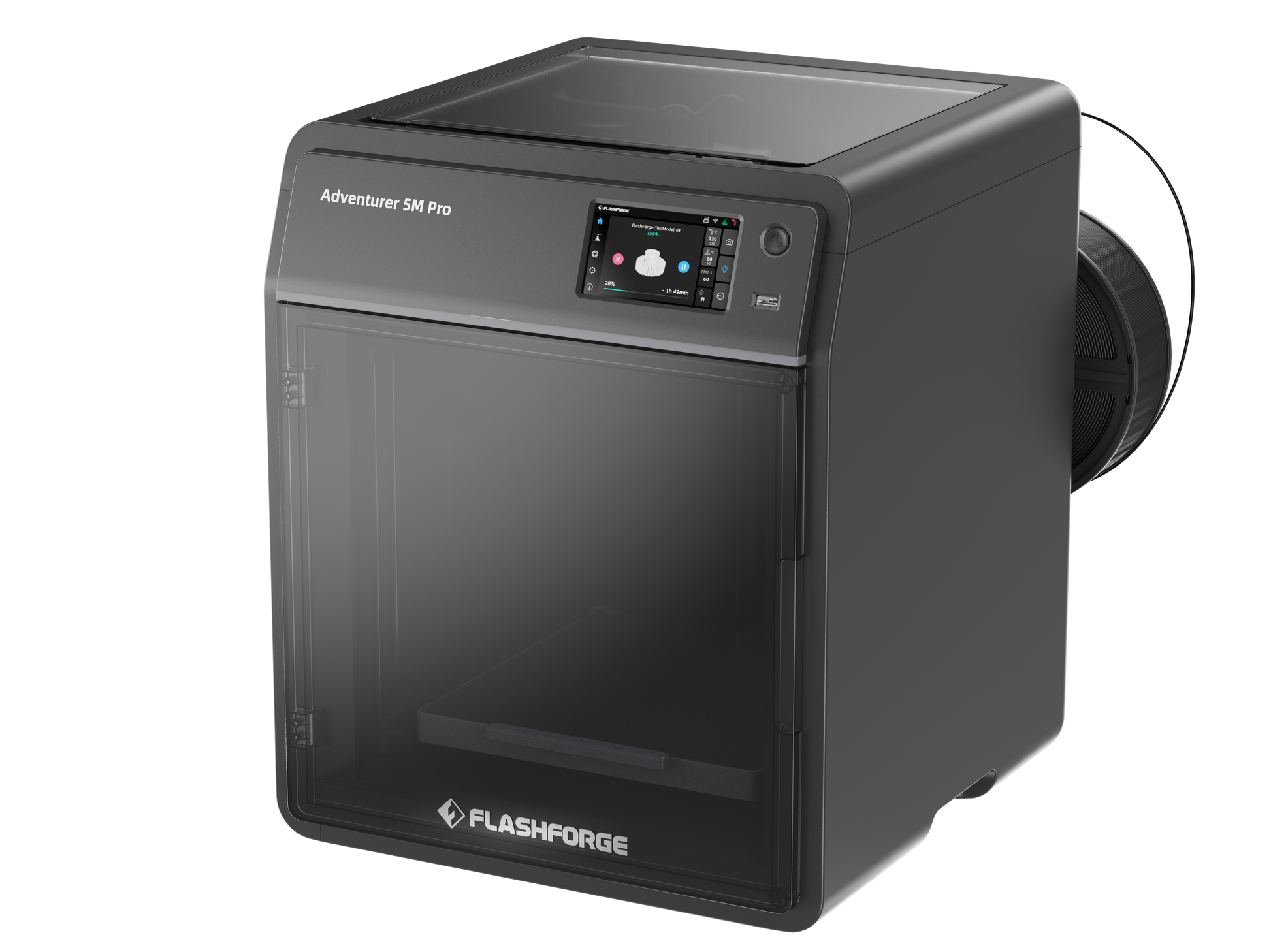

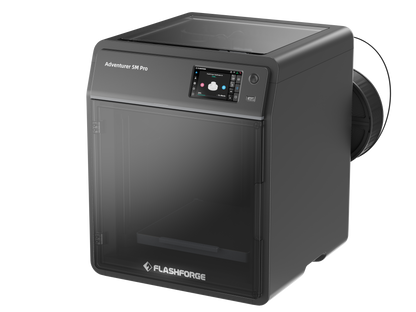

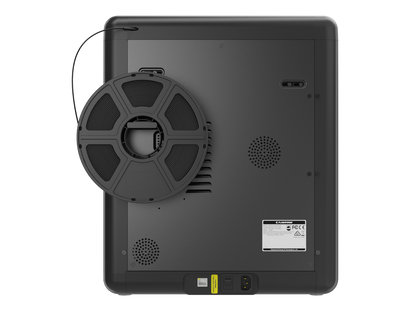

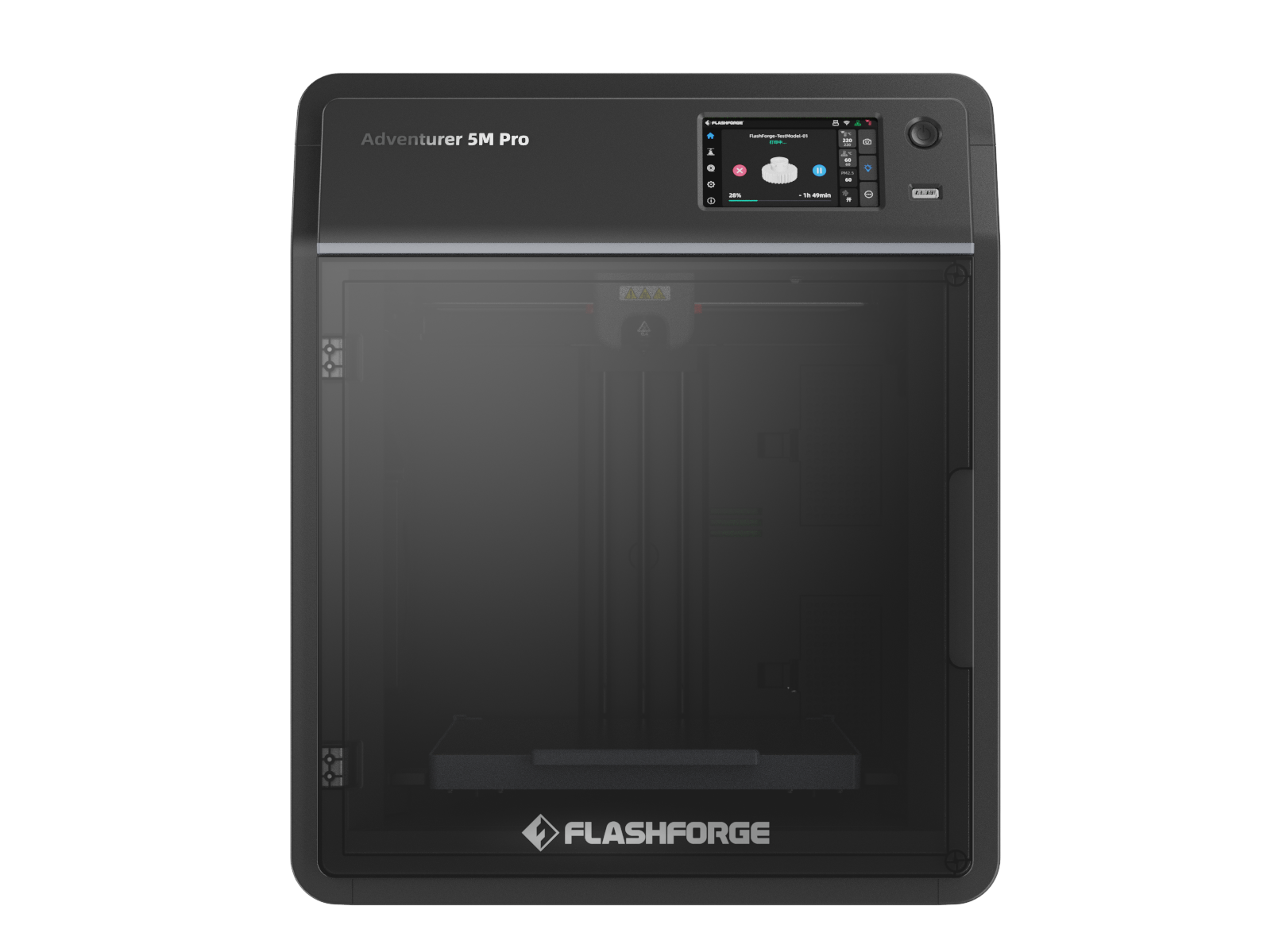

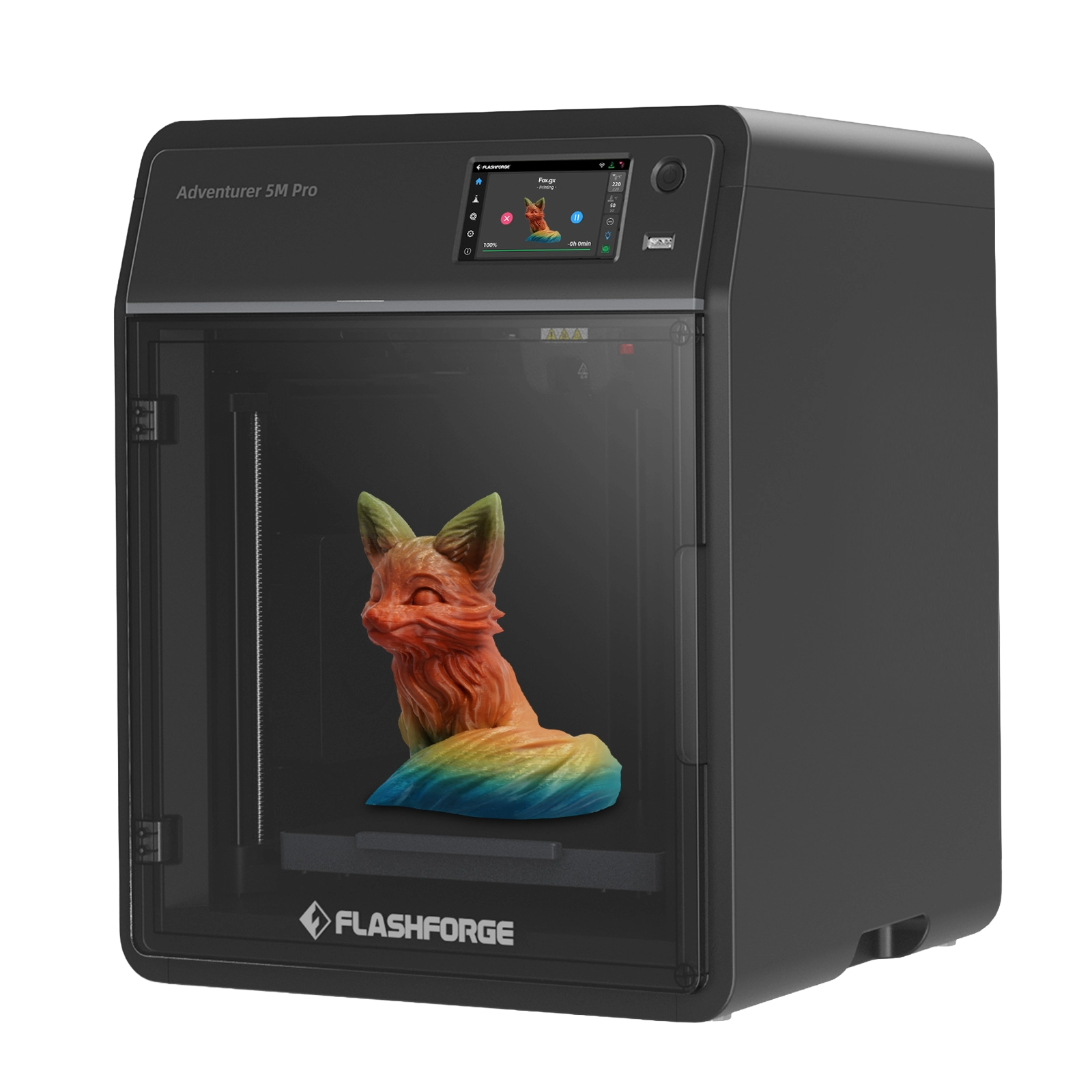

FlashForge AD5M Pro 3D Printer

Enclosed CoreXY 3D printer with high-speed printing and fully automatic bed levelling

The Flashforge Adventurer 5M Pro is a high-speed fully enclosed CoreXY 3D printer designed for reliable, professional-quality printing. Combining a robust metal CoreXY structure, automatic levelling and advanced temperature control, it delivers fast, accurate results with minimal setup.

With print speeds up to 600 mm/s, acceleration up to 20,000 mm/s², and a precision direct-drive extruder, the AD5M Pro provides excellent performance for rapid prototyping, education, engineering projects and everyday 3D printing.

The enclosed design improves temperature stability while the integrated HEPA and activated carbon filtration system helps reduce odours and airborne particles, making it suitable for offices, classrooms and professional environments.

Key Features

Fully Enclosed CoreXY Structure – Improved stability and temperature control
High-Speed Printing – Travel speeds up to 600 mm/s
20,000 mm/s² Acceleration – Faster print movement and reduced print times
Fully Automatic Bed Levelling – One-click calibration for consistent results
Direct Drive Extruder – Reliable extrusion for a wide range of materials
280°C High-Temperature Nozzle – Supports PLA, PETG, ABS, ASA, TPU and composite filaments
Flexible PEI Spring Steel Plate – Easy removal and excellent adhesion
Dual Air Filtration System – HEPA + activated carbon filtration
Automatic Filament Detection – Alerts users when filament runs out
Power Loss Recovery – Resume printing after power interruptions
Built-In Camera Monitoring – Remote print monitoring capability
Low Noise Operation – Designed for quieter indoor environments
Wi-Fi, Ethernet & USB Connectivity
Compatible with FlashPrint 5, Orca-Flashforge and Orca Slicer

Specifications

Printing technology: FDM / FFF
Motion system: CoreXY
Build volume: 220 × 220 × 220 mm
Maximum print speed: 600 mm/s
Recommended print speed: Up to 300 mm/s
Maximum acceleration: 20,000 mm/s²
Nozzle temperature: Up to 300°C
Heated bed temperature: Up to 110°C
Standard nozzle: 0.4 mm
Optional nozzle sizes: 0.25 mm, 0.6 mm, 0.8 mm
Layer height: 0.10–0.40 mm
Extruder: Direct drive
Build plate: Flexible PEI-coated spring steel
Supported materials: PLA, PLA-CF, PETG, PETG-CF, TPU, ABS, ASA*
Connectivity: Wi-Fi (2.4/5 GHz), Ethernet, USB
Display: 4.3-inch colour touchscreen
Air filtration: HEPA 13 + activated carbon filter
